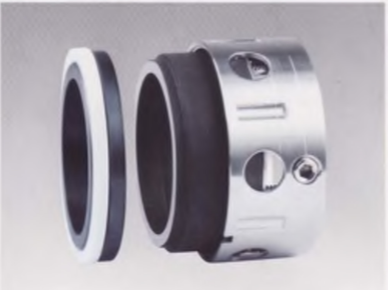

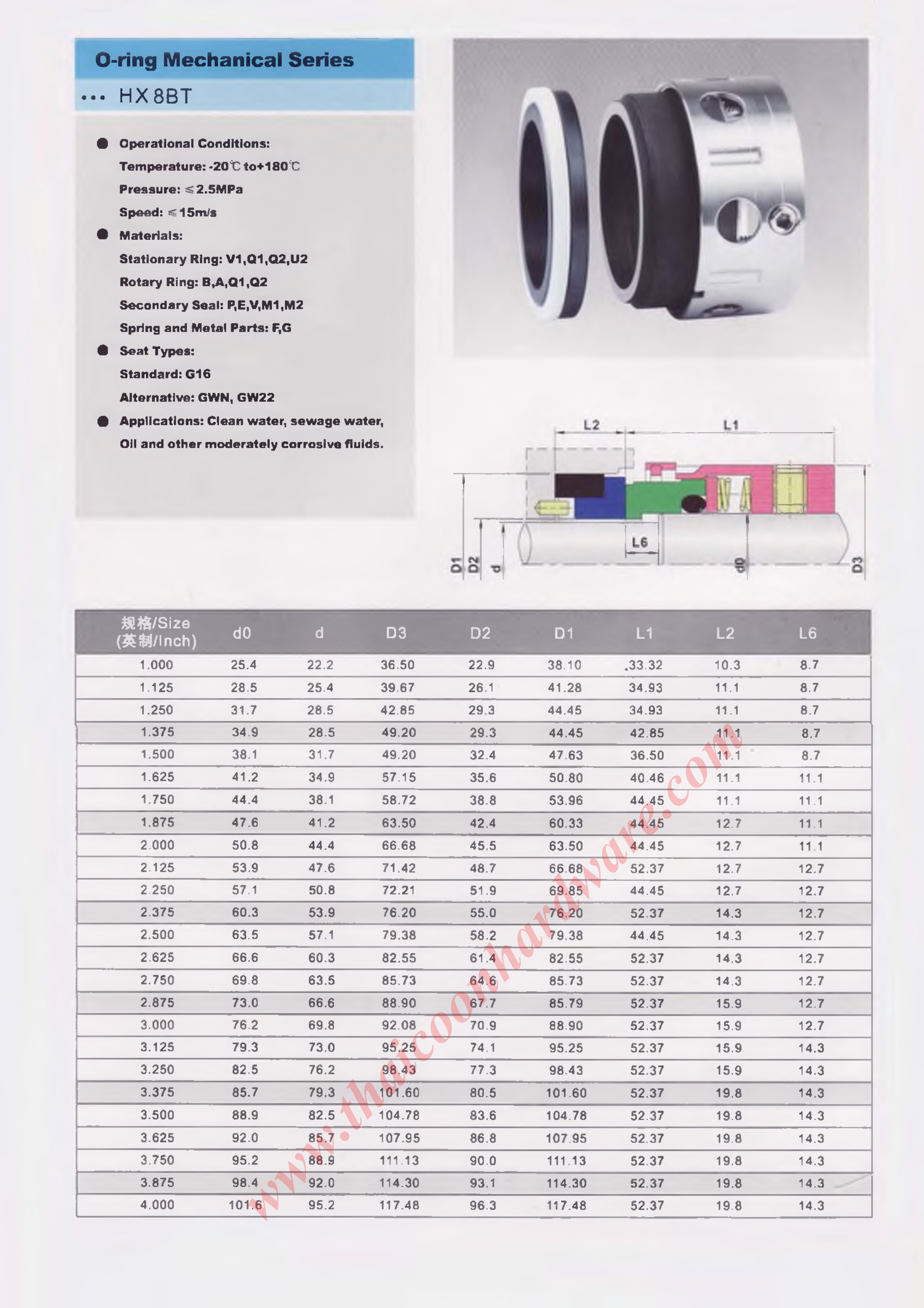

o-ring mechanical series hx8bt

Operational Conditions
Temperature	-20˚C to+ 180˚C
Pressure	≤2.5MPa
Speed	≤15m/s
Materials
Stationary Ring	V1,Q1,Q2,U2
Rotary Ring	B,A,Q1,Q2
Secondary Seal	P,E,V,M1,M2
Spring and Metal Parts	F,G
Seat Types
Standard	G16
Altemative	GWN,GW22
Appllcations	Clean water,sewage water, Oil and other moderately corrosive fluids
